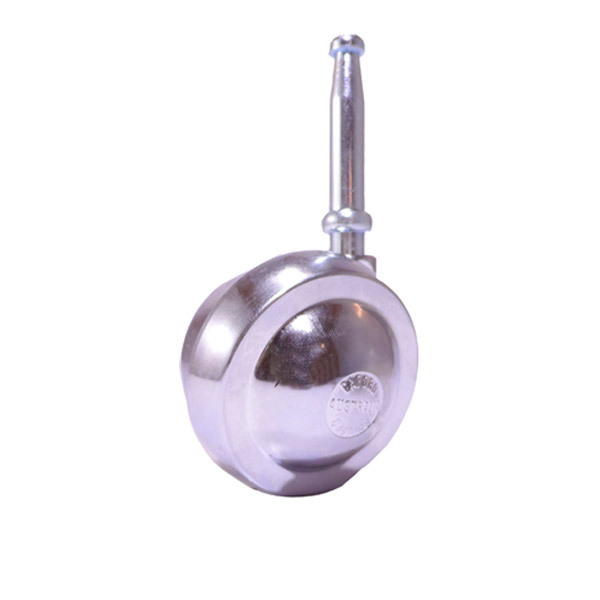

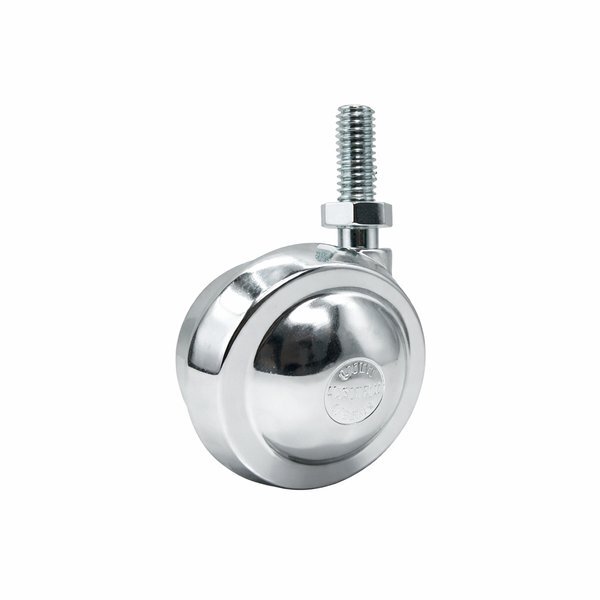

65mm Metal Ball Castor - Select Attachment Fitting

Specifications Castor Wheel Specifications: Wheel diameter: 65mm Wheel type: metal ball castor Mount height: 77mm Swivel radius: 55mm Load capacity: 45kg per castor Fitting Options and Specifications: Screw Plate Fitting: Type: Square base plate for screw fastening Application: The square base plate attachment is particularly suited to furniture with a thin mounting surface where a castor and pin stem system cannot be fitted. Plate Dimensions: 38mm Hole Diameter: 5mm Distance Between Hole Centres: 27mm Compatible Components: 8 gauge screws for mounting the baseplate to flat board and timber surfaces. Grip Neck | Push-In Stem Fitting: Type: Push-in grip neck pintle stem #7 Application: The perfect solution for fastening castor wheels to tube furniture legs on desks, tables, and trollies with minimal mounting space or inserted into furniture and equipment with a thick timber base. Compatible Components: #7 Pintle Sockets Round Nylon Sockets for Tube: Product Codes N5, N6, N7, N4, N10, N3, N13, N15 and N17. Round Nylon Sockets for Timber: Product Codes N5, N8 and N2. Square Nylon Sockets for Tube:Product Codes N1, N9, N14 and N18. Metal Grip Neck Socket for Timber: Product Code C730 Screw-In Threaded Stem Fitting: Type: 20mm threaded stem  Application: The main benefit of castors with a threaded rod or stem is their ease of replacement by simply unscrewing. Typically used to fix castor wheels to timber furniture frames on sofas, chairs, beds, and table legs Compatible Components: When replacing existing castor wheels, please ensure the connecting nut in your furniture has a matching thread. 5/16 Thread Screw-In Castor = 5/16 Texcert | Insert Nut with Flange, 5/16 bsw thread x 20mm long 3/8 Thread Screw-In Castor = 3/8 Texcert | Insert Nut with Flange, 3/8 bsw thread x 20mm long M10 Thread Screw-In Castor = M10 Texcert | Insert Nut with Flange, metric M10 thread x 20mm long Expanding Socket Pin Threaded Stem Fitting: Type: 3/8 UNF x 50mm pin for Expanding Socket Application: the expanding socket pin threads into socket an expanding socket. Expanding sockets fit various tube sizes - to purchase a castor with an expanding socket click here.  25mm of the castor's pintle stem is threaded so that the castor screws into the expanding socket nut. Compatible Components: When replacing existing castor wheels, please ensure the connecting socket in your furniture has a matching thread. Important note: the 3/8 UNF is a fine-pitch thread with more threads per inch; it will not work with the 3/8 BSW. Round T1 Expanding Metal Socket: Oustide Diameter 19mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 17.2 - 15.8mm Round T2 Expanding Nylon Socket: Outside Diameter 22mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 20.2 - 18.8mm Round T3 Expanding Nylon Socket: Outside Diameter 25.4mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 23.6 -22.2mm Round T4 Expanding Metal Socket: Outside Diameter 32mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 30.2 - 28.8mm Square T8 Expanding Nylon Socket: Outside Diameter 25.4mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 23.6 - 22.2mm Square T9 Expanding Meatl Socket: Outside Diameter 19mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 17.2 - 15.8mm
