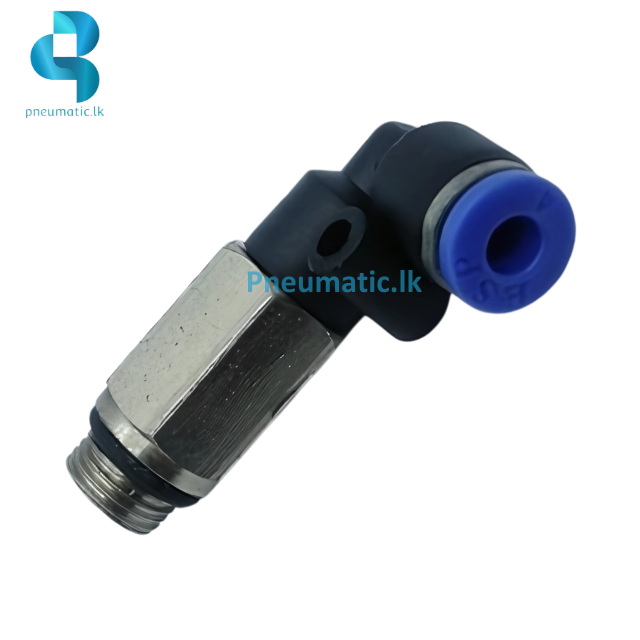

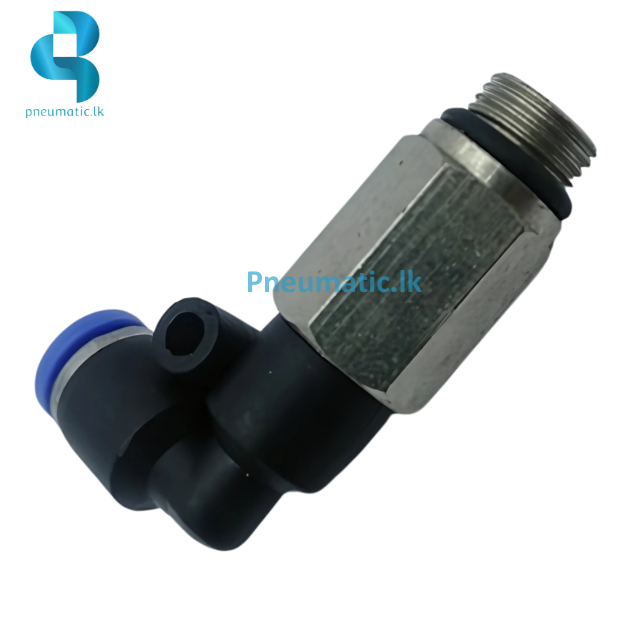

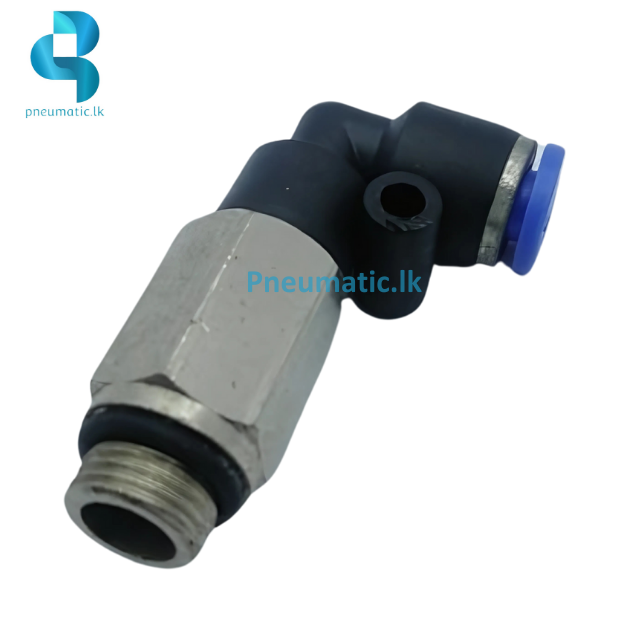

PLL04-01 | Male Elbow Push-In Connector Tube Outer Diameter (OD): 4mm Thread Size: 1/8 (BSPT) Body Material: PBT (Polybutylene Terephthalate) Thread Material: Nickel-Plated Brass Sealing: O-ring (NBR – Nitrile Butadiene Rubber) and Teflon Seal Working Temperature Range: 0°C to 60°C (32°F to 140°F) Working Pressure Range: 0 to 150 psi (0 to 1.0 MPa) Proof Pressure: 3.0 MPa (435 psi) Negative Pressure: -100 Kpa (29.5 In Hg) Appliable Media: Air, Vacuum, Water (Non-Freezing) Special Features: Extended Body for Tight Spaces High Durability: Can withstand high pressure and adverse conditions Corrosion and Wear Resistant Compact Design: Space-saving and user-friendly If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
